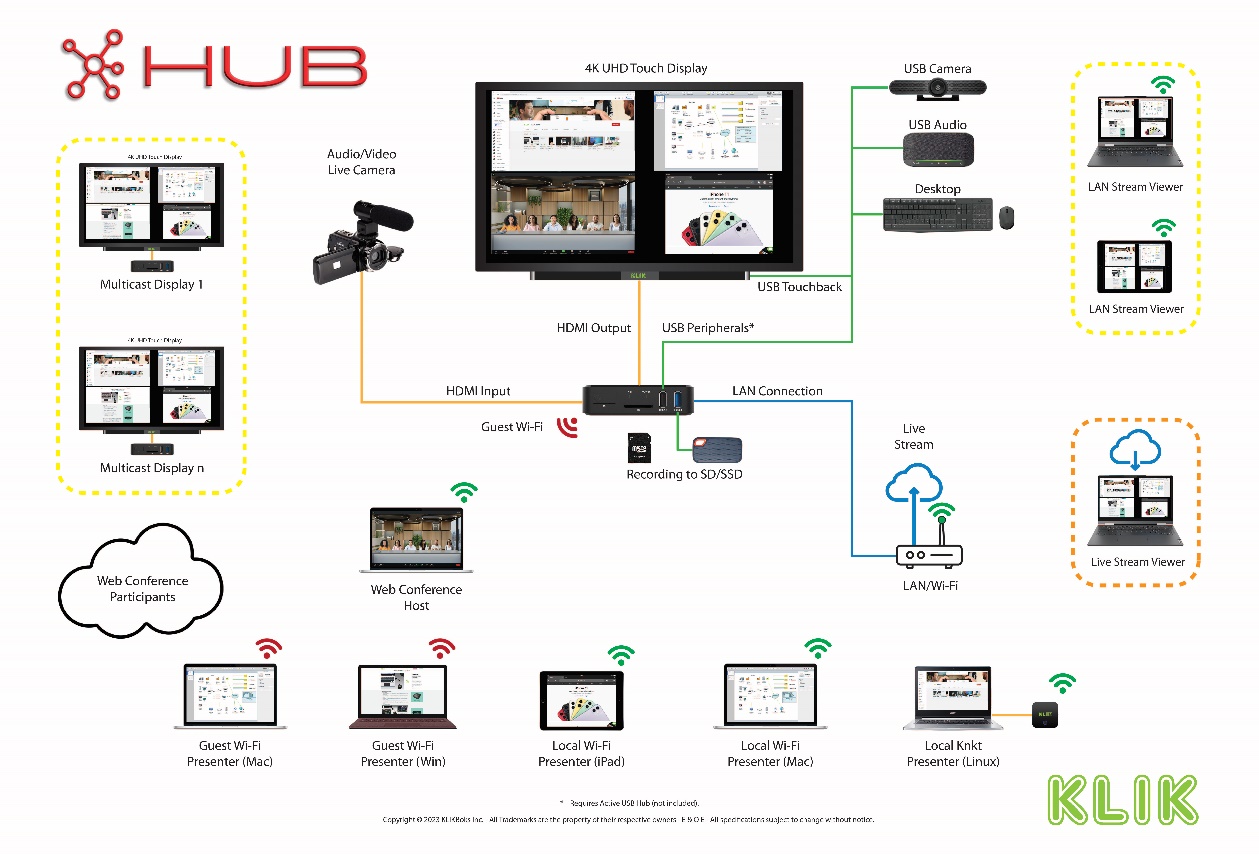

The KB1200 Wireless Collaboration System integrates several functions essential to digital collaboration with both in-person and remote participants. This includes wireless USB connectivity for use in video conferencing, wireless screen sharing, video capture and live streaming, local multicasting, and more.
Compatible with PCs, Tablets and Smartphones, the KB1200 can be used with the native streaming utilities found on Windows, Mac, iOS, Android and Chromebook devices, or with the KLIKConnect™ software application for added features & benefits. (See https://www.klikboks.com/klikconnect for more information and free downloads of the KLIKConnect app for Windows & Mac PCs.).
1) Key Hardware Features
- BYOM video conference support with wireless USB connectivity to cameras, audio systems and HID control devices.
- 4K UHD multi-screen sharing, with the ability to display 4 HD streams simultaneously
- Supports full screen mirroring from Windows, Mac, iOS, Android & Chromebook devices
- Live-stream content, in real time, to RTMP private or public channels, or record locally
- Fully optimized for touch displays, with on-screen content thumbnails for content selection
- Ethernet & Wi-Fi network connectivity, Guest Access Point (AP), and support for 802.1x Radius Wi-Fi authentication
- Supports Open Access, Password Access & Moderated Access operating modes
- Built-in Annotation & Whiteboard application with multi-page support
- USB Touchback for use with touch displays or with shared HID pointing device
- HDMI input for connection of additional video source devices
- Rebroadcast feature allows audience to view and capture presentation in a browser
2) Key KLIKConnect Features
- Integrated Wi-Fi and Device Discovery interface
- Wireless USB connectivity for use of KB1200-attached Audio & Video devices with video conferencing applications
- Wireless screen sharing (mirroring) from PC in full-HD (1080p)
- Simultaneous Multicasting to multiple KB1200 devices in any combination.
- KLIKStream™ remote viewing capability with screen capture across LAN
- Peer-to-peer file sharing utility
- PC-based annotation and whiteboard application with screen capture capability
3) What’s in the Box
- KB1200 Wireless Presentation System
- 5V/2A Universal Power Adapter & USB to barrel jack Power Cable
- 1.5m HDMI Cable
- Quick-start Guide
4) Installation Considerations
Power
The KB1200 is supplied with an AC-DC power adapter rated at 5V/2A. To ensure proper operation and stability do not operate the KB1200 with any adapter other than the supplied unit.
USB Peripherals
The KB1200 accepts connection of video webcams, audio systems (speakerphones) and HID control devices (keyboard, mouse, graphics tablet…) as well as USB touch display interfaces.
The device is provisioned with two USB Type-A ports; one supporting USB 2.0 and the second supporting USB 3.0 devices. Either port may be used for low data-rate devices such as audio, video and control devices, whereas the USB 3.0 port is recommended for high data-rate applications such as SSD connections for recording.
For installations that require more than the provided 2 outlets, a USB hub may be added to increase the number of connection ports. A compatible 2x4-port USB hub is offered by KLIK as an optional accessory (see https://www.klikboks.com/klik-boks-hub) or a standard USB 2.0 or USB 3.0 active (powered) hub may be added.
Connecting a Mouse
Access to KB1200 setup and operating menus requires the connection of a USB mouse; a wireless keyboard/mouse combination is highly recommended. The keyboard may be removed after setup is completed, but it is recommended that a mouse remain connected as a convenience for accessing several of the KB1200’s features.
A mouse or Touch Screen interface is required when using the KB1200 in Moderator mode without a moderator PC.
Connect a USB mouse or wireless desktop by inserting the USB cable or dongle into either of the two USB connectors on the front panel.
Mounting & Ventilation
The KB1200 may be placed on any flat surface, or alternatively, wall mounted. If wall mounting, orient the KB1200 so that the side vents are facing up on one side and down on the other. Recessed mounting tabs aid in wall mounting. KB1200 is equipped with a “Kensington-style” lock perforation on the right side of the enclosure.
